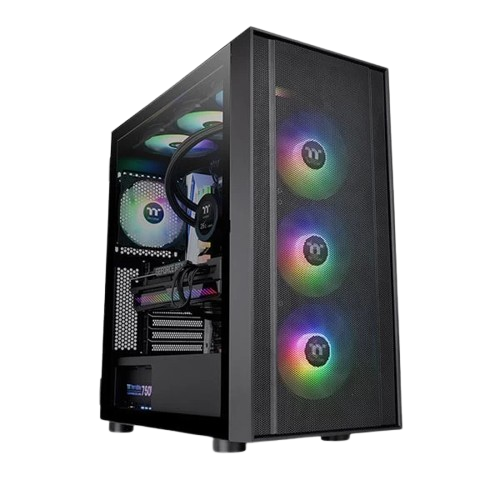

Thermaltake H570 TG ARGB (E-ATX) Mid Tower Cabinet (Black)

ThermalTake H570 TG ARGB mid-tower chassis comes with three pre-installed hydraulic bearing 120mm ARGB Lite front fans, and can support up to E-ATX (12" x 13") Motherboards. It comes with a large airflow-optimized mesh panel at the front for mas
Features:

H570 TG ARGB Mid-Tower Chassis

H570 TG ARGB mid-tower chassis is the latest edition of our H series. It can support up to E-ATX (12“ x 13”) Motherboards, and it comes with three pre-installed hydraulic bearing 120mm ARGB Lite front fans, which can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be fitted in the chassis and up to 360mm radiator can be placed at the top and the front of the H570 TG ARGB mid-tower chassis.

Mesh Front Panel

H570 TG ARGB mid-tower chassis comes with a large airflow-optimized mesh panel at the front for massive airflow performance.

Three Pre-installed Hydraulic Bearing 120mm ARGB Lite Front Fans

H570 TG ARGB mid-tower chassis comes with three pre-installed hydraulic bearing 120mm ARGB Lite fans at the front of the case. Users may enjoy the fascinating lighting effects by controlling them through the motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

Built-in PSU Cover

H570 TG ARGB mid-tower chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

Hinged Tempered Glass Panel

H570 TG ARGB mid-tower chassis comes with one 4mm hinged tempered glass panel on the left side, thicker and more scratch resistant when compared to standard acrylic. On top of that, the enlarged window design enables you to display and admire all your components in their full RGB glory.

Handy I/O Ports

Two USB 3.0 ports, and one HD Audio are placed on the top panel to grant direct access when needed.

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Specifications:

 Part Number     CA-1T9-00M1WN-01
 Model      H570 TG ARGB
 CASE TYPE      Mid Tower
 Dimension (H x W x D)     487 x 216 x 463.6 mm
(19.2 x 8.5 x 18.3 inch)
 NET WEIGHT      7.5 kg / 16.5 lbs.
 PANEL      4mm Tempered Glass x 1
 Color      Black
 MATERIAL      SPCC
 COOLING SYSTEM      Front(intake):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 3
 Drive Bays      2 x 3.5”, 2 x 2.5” or 4 x 2.5”
 EXPANSION SLOTS     7
 MOTHERBOARDS    6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13”(E-ATX)
 I/O Port      USB 3.0 x 2, HD Audio x 1
 PSU      Standard PS2 PSU (optional)
 FAN SUPPORT      Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Top:
3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm
Rear:
1 x 120mm
 RADIATOR SUPPORT      Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear:
1 x 120mm
 CLEARANCE     CPU cooler height limitation:
160mm
VGA length limitation:
375mm
PSU length limitation:
180mm
 Warranty     3 Years
