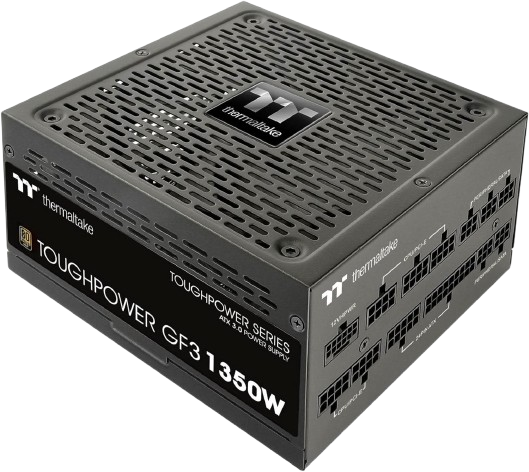

Thermaltake Toughpower GF3 1350 Watt 80 Plus Gold ATX 3.0 SMPS

Features:

Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.

The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1350W can deliver up to 600W for PCIe 5.0 graphics cards.

Toughpower GF3 1350W Gold - TT Premium Edition

PCIe Gen 5.0 Ready! Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1350W includes all the critical features such as < 30mV low ripple noise design, extremely strict voltage regulation < ±3%, hold up time> 17 milliseconds, and comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.

Specifications:

Model Number     PS-TPD-1350FNFAGD-4
watts    1350W
Max. Output Capacity    1350W
Color    Black
Dimension ( W / H / D )    150mm(W) x 86mm(H) x 160mm(D)
Weight    1.83 KG
PFC (Power Factor Correction)    Active PFC
Power Good Signal    100-250 msec
Hold Up Time    > 17msec at 100% of full load
 Input Current    16 - 8A
 Input Frequency Range    50-60Hz
 Input Voltage    100 - 240V~
OPERATING TEMPERATURE      0°C to + 50°C
 Operating Humidity    20% to 90%, non-condensing
Storage Temperature    -40°C to + 70°C
Storage Humidity    20% to 95%, non-condensing
 COOLING SYSTEM    14cm hydraulic bearing fan
 Efficiency      Meet 80 PLUS®Gold at 115Vac input.
 MTBF      100,000 hrs minimum
 Safety Approval      CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/S-Mark/BIS/KCC
 Warranty     10 Years
