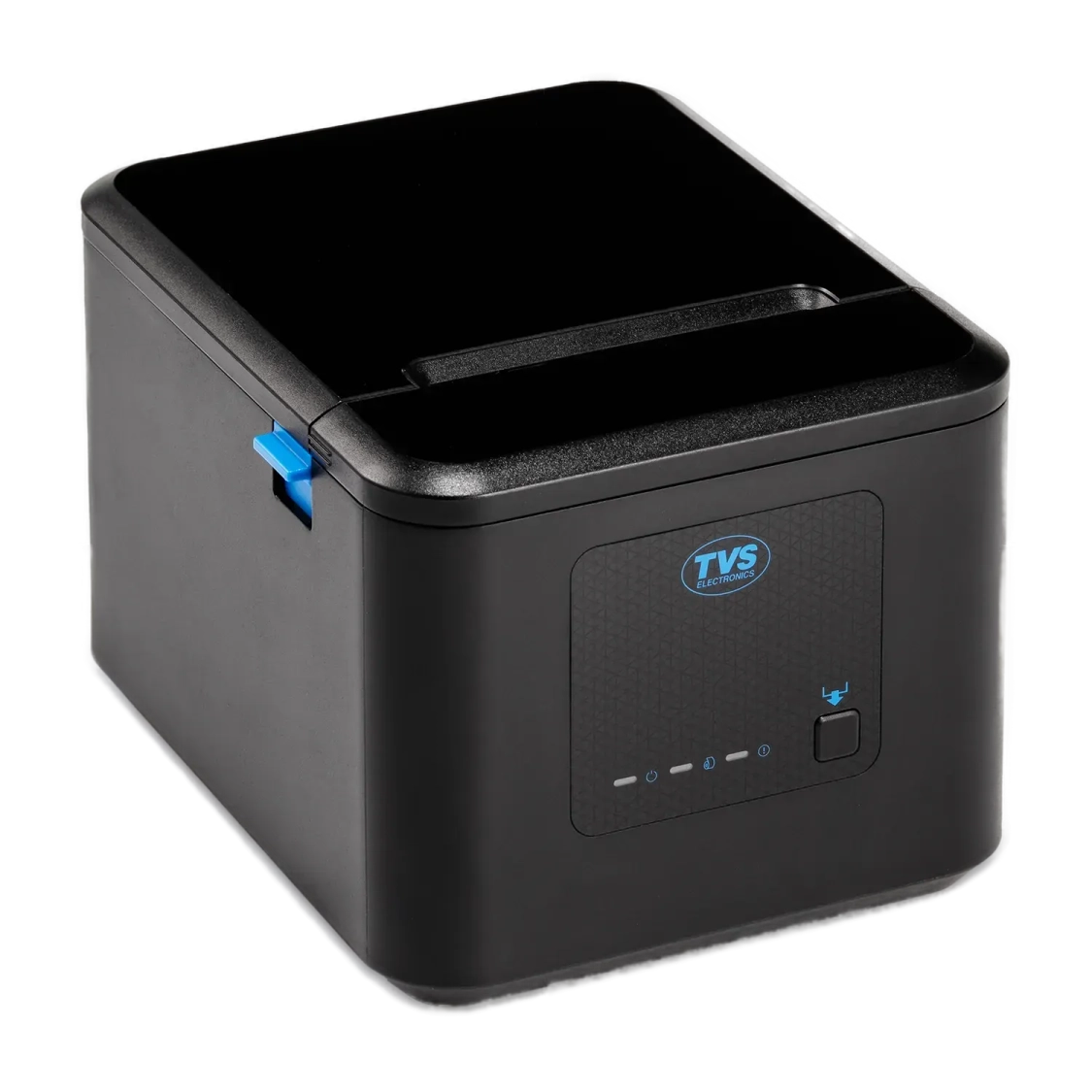

TVS RP 3230 3 Inch Thermal Receipt Printer ( USB Type-B / Ethernet / Serial )

RP 3230 thermal printer comes with different wired options such as USB, Serial, Ethernet and cashdrawer port which makes it an exemplary choice for Retail and Hospitality segments. Its High-speed printing enhances swift billing and ticketing, thus reducing long queues.Equipped with three at a glance LEDs for visualizing printer status.

ADVANTAGES:
1. Compact design
2. Luminous logo design
3. High printing speed
4. Multiple Communication Interface
5.Compatible with commands Supports advanced emulations
6. Support wall mounting
7.Support error reprint
Product Specification     Details
Print Model      RP 3230
Printing Method     Direct thermal printing
Resolution     203 DPI (8dots/mm)
Print Width     72mm / 48mm
Print Speed     Max. 230mm/
Emulation     ESC/POS
Page Mode     Support
Page Type     Thermal continuous paper
Paper width     79.5±0.5mm/57.5±0.5mm
Paper Container     Max. 83mm
Paper Feed     Upward feed direction
Standard     USB Type-B, Ethernet, Serial, Cash drawer
1D barcode     UPC-A, UPC-E, Code 39, Code 93, Code] 28, EAN8, EANI3, Interleaved2 of 5,Codabar
2D barcode     QR Code,PDF417
Chinese Character     Simplified/Traditional: (24 x 24 dots)
English Character     ASCII: Font A 12×24, Font B 9×17
Code Page     47
Graphics     Support bitmap printing and bitmap downloading with different density and user defined (Max. 64K for each bitmap and the total bitmap cannot exceed 512K)
Buzzer     Internal buzzer kitchen bell(optional)
Sensor (Standard)     Paper end, cover opening, cutter jam, TPH over-temperature
Sensor (Optional)     Black mark sensor
RAM     4 MB
Flash     4 MB
Input Power     ACI00V-240V, 50/60Hz
Output Power     DC 24V 2A
Driver     Windows 7/8/10, Windows Server 2008/2012/2016 Linux, Javapos,OPOS,MacOS
Utility Tool     Windows 7/8/10, Windows Server 2008/2012/2016
TPH Life     100 KM
Cutter Life     1,500,000 times
Operating     0-45°C / 5-95%RH No condensation
Storage     20-70°C / I5-95%RH No condensation
Certification     BIS
Weight     0.916kg
Dimension     140x 179 x117(LxWxH (mm))
