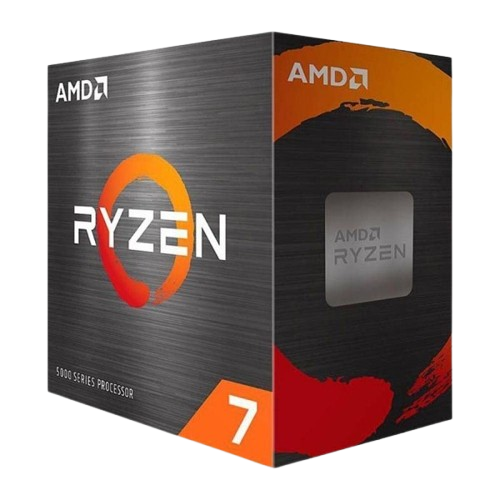

AMD Ryzen 7 5700 Desktop Processor - 100-100000743BOX

AMD Ryzen 7 5700 is a AM4 Unlocked Processor with 8 CPU Core, 16 Threads, Up to 4.6GHz Boost Clock, 3.7GHz Base Clock, 20MB Cache and Zen 3 Architecture, 65W TDP and DDR4 Memory. This CPU Good for multitasking, content creation, video editing, 3D renderin
Specifications:

Model    AMD Ryzen 7 5700
Platform    Boxed Processor
Market Segment    Mainstream Desktop
Product Family    AMD Ryzen™ Processors
Product Line    AMD Ryzen™ 7 Desktop Processors
Consumer Use    Yes
Former Codename    "Cezanne"
Architecture    "Zen 3"
# of CPU Cores    8
# of Threads    16
Max. Boost Clock    Up to 4.6GHz
Base Clock    3.7GHz
L1 Cache    512KB
L2 Cache    4MB
L3 Cache    16MB
Default TDP    65W
AMD Configurable TDP (cTDP)    45-65W
Processor Technology for CPU Cores    TSMC 7nm FinFET
CPU Compute Die (CCD) Size    180mm²
Package Die Count    1
Unlocked for Overclocking    Yes
CPU Socket    AM4
Socket Count    1P
Supporting Chipsets    X570
X470
X370
B550
B450
B350
A520
CPU Boost Technology    Precision Boost 2
Instruction Set    x86-64
Supported Extensions    AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB)    AMD Wraith Stealth
Max. Operating Temperature (Tjmax)    95°C
*OS Support    Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support    Yes
Native USB 4 (40Gbps) Ports    0
Native USB 3.2 Gen 2 (10Gbps) Ports    4
Native USB 3.2 Gen 1 (5Gbps) Ports    0
Native USB 2.0 (480Mbps) Ports    0
Native SATA Ports    2
PCI Express® Version    PCIe 3.0
Native PCIe® Lanes (Total/Usable)    24 / 20
Additional Usable PCIe Lanes from Motherboard
AMD X570 16x Gen 3
AMD X470 2x Gen 3
AMD X470 8x Gen 2
NVMe Support    Boot, RAID0, RAID1, RAID10
System Memory Type    DDR4
Memory Channels    2
System Memory Subtype    UDIMM
System Memory Specification    Up to 3200MT/s
Max Memory Speed
2x1R  DDR4-3200
2x2R  DDR4-3200
4x1R  DDR4-2933
4x2R  DDR4-2667
ECC Support    No
Graphics Capabilities
Integrated Graphics    No
Graphics Model    Discrete Graphics Card Required
Key Features
Supported Technologies    AMD StoreMI Technology
AMD Ryzen™ VR-Ready Premium
Warranty    3 Years
