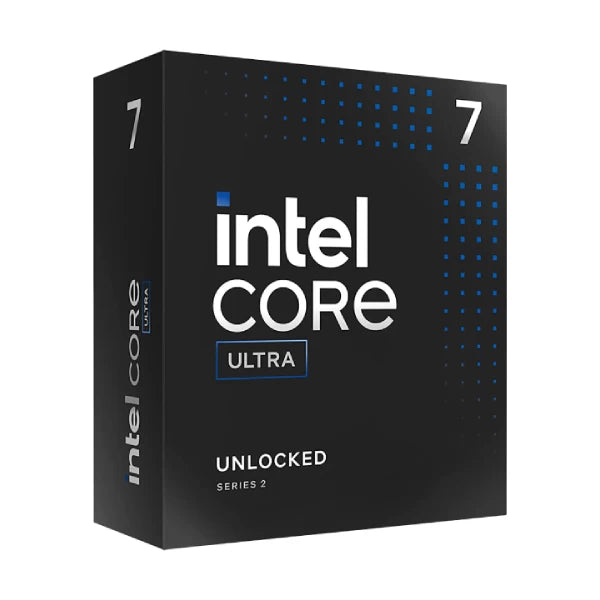

Intel Core Ultra 7 Processor 265K 30M Cache, up to 5.50 GHz - BX80768265K

Intel Core Ultra 7 Processor is the future of AI featured CPU with integrated Graphics and unlocking technology so you can manually improve your CPU’s performance. It has Dual channel memory that support Up to DDR5 Ram with maximum speed of 6400MHz

Specifications:

Model    Intel Core Ultra 7 Processor 265K
Essentials
Product Collection    Intel Core Ultra Processors (Series 2)
Vertical Segment    Desktop
CPU Specifications
Total Cores    20
of Performance-cores    8
of Efficient-cores    12
Total Threads    20
Max Turbo Frequency    5.5 GHz
Intel Turbo Boost Max Technology 3.0 Frequency    5.5 GHz
Performance-core Max Turbo Frequency    5.4 GHz
Efficient-core Max Turbo Frequency    4.6 GHz
Performance-core Base Frequency    3.9 GHz
Efficient-core Base Frequency    3.3 GHz
Cache    30 MB Intel Smart Cache
Total L2 Cache    36 MB
Processor Base Power    125 W
Maximum Turbo Power    250 W
Intel Deep Learning Boost (Intel DL Boost) on CPU    Yes
AI Software Frameworks Supported by CPU    OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography    TSMC N3B
Memory Specifications
Max Memory Size (dependent on memory type)    192 GB
Memory Types    Up to DDR5 6400 MT/s
Maximum Memory Speed    6400 MHz
Max of Memory Channels    2
ECC Memory Supported    Yes
GPU Specifications
GPU Name    Intel Graphics
Graphics Base Frequency    300 MHz
Graphics Max Dynamic Frequency    2 GHz
GPU Peak TOPS (Int8)    8
Graphics Output    DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Xe-cores    4
Max Resolution (HDMI)    4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
Max Resolution (DP)    8K @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡    4K @ 60Hz
DirectX Support    12
OpenGL Support    4.5
OpenCL Support    3
Intel Quick Sync Video    Yes
of Displays Supported    4
Device ID    0x7D67
Intel Deep Learning Boost (Intel DL Boost) on GPU    Yes
NPU Specifications
NPU Name    Intel AI Boost
NPU Peak TOPS (Int8)    13
Sparsity Support    Yes
Windows Studio Effects Support    Yes
AI Software Frameworks Supported by NPU    OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
Direct Media Interface (DMI) Revision    4
Max  of DMI Lanes    8
Intel Thunderbolt 4    Yes
Scalability    1S Only
PCI Express Revision    5.0 and 4.0
PCI Express Configurations ‡    Up to 1x16+2x4, 2x8+2x4,
1x8+4x4
Max # of PCI Express Lanes    24
Package Specifications
Sockets Supported    FCLGA1851
Thermal Solution Specification    PCG 2020A
Max Operating Temperature    105 °C
Advanced Technologies
Intel Volume Management Device (VMD)    Yes
Intel Gaussian & Neural Accelerator    3.5
Intel Thread Director    Yes
Intel Speed Shift Technology    Yes
Intel Turbo Boost Max Technology 3.0    Yes
Intel Turbo Boost Technology    2.0
Intel 64    Yes
Instruction Set    64-bit
Instruction Set Extensions    Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States    Yes
Enhanced Intel SpeedStep Technology    Yes
Thermal Monitoring Technologies    Yes
Security & Reliability
Intel vPro Eligibility    Intel vPro Enterprise, Intel vPro Platform
Intel Threat Detection Technology (TDT)    Yes
Intel Active Management Technology (AMT)    Yes
Intel Standard Manageability (ISM)    Yes
Intel Remote Platform Erase (RPE)    Yes
Intel One-Click Recovery    Yes
Intel Hardware Shield Eligibility    Yes
Intel Control-Flow Enforcement Technology    Yes
Intel Total Memory Encryption - Multi Key    Yes
Intel AES New Instructions    Yes
Secure Key    Yes
Intel Trusted Execution Technology    Yes
Execute Disable Bit    Yes
Intel OS Guard    Yes
Mode-based Execute Control (MBEC)    Yes
Intel Stable IT Platform Program (SIPP)    Yes
Intel Virtualization Technology with Redirect Protection (VT-rp)    Yes
Intel Virtualization Technology (VT-x)    Yes
Intel Virtualization Technology for Directed I/O (VT-d)    Yes
Intel VT-x with Extended Page Tables (EPT)    Yes
Warranty    3 Years
