1 1

Brand: MSI

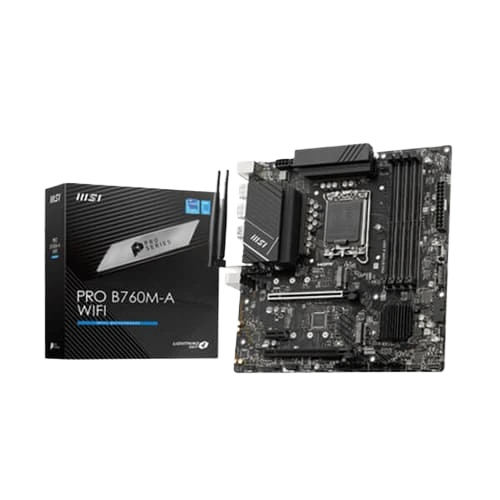

MSI Pro B760M-A WIFI DDR5 Motherboard

MSI Pro B760M-A WIFI DDR5 Motherboard

SKU : PRO-B760M-A-WIFI-DDR5

₹ 15,900.00
₹ 29,999.00 ₹ 15,900.00
-46% OFF Sold out
Taxes included. Shipping calculated at checkout.
Available EMI's: Credit | Debit | Cardless | BNPL

No Cost | Low Cost EMI Available upto 24 Months

Bajaj Finserv EMI: No Cost EMI Available upto 12 Months

Cancellation/Refunds fees applicable

Fees: 15% Will be deducted from Order Value!

Min Order Value ₹5000 to ₹75000 with Bajaj EMI Card.

Ships: Within 3 to 4 days Post Order

Delivery : Express 4-7 Days!   Standard 5-9 Days!

Get it between -

Save More with offers: CC | DC | EMI | NC/LC EMI

Get 10% Instant Discount upto ₹3500 on Credit Cards

Get ₹5000 Discount on No/Low Cost EMI with Selected Banks

Select offer/coupons at Checkout with - PayU Payment Page.

Features:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specification:

Model PRO-B760M-A-WIFI-DDR5
Chipset INTEL B760
CPU Support

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory

4x DDR5, Maximum Memory Capacity 192GB
Memory Support 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics Support HDMI™ 2.1, maximum resolution of 4K 60Hz
Support DP 1.4, maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
2x HDMI™
2x DisplayPort
Expansion Slot 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
LAN Realtek® RTL8125BG 2.5G LAN
Wireless Lan & Bluetooth

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen1 Type C
LED Features 4x EZ Debug LED
Back Panel Ports
  • Keyboard / Mouse
  • DisplayPort
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • 2.5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • USB 2.0
  • HDMI™
  • USB 3.2 Gen 2 10Gbps (Type-A)
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info mATX
243.84mmx243.84mm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
View full details
