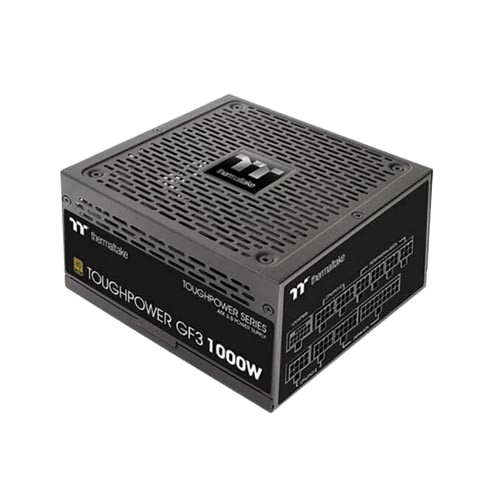

Thermaltake Toughpower GF3 1000 Watt ATX 3.0 80 Plus Gold SMPS

Features:

Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.

The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1000W can deliver up to 600W for PCIe 5.0 graphics cards.

Toughpower GF3 1000W Gold - TT Premium Edition

PCIe Gen 5.0 Ready! Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1000W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1000W includes all the critical features such as < 30mV low ripple noise design, extremely strict voltage regulation < ±2%, Hold up time> 17 milliseconds, and comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.

Fully Compatible With Intel PSDG ATX 3.0 Specifications

Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.

Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections.

PCIe Gen 5.0 Ready

Toughpower GF3 1000W Gold comes with a 16pin connector to offer powerful and stable performance allowing the PSU to run next-generation GPUs naturally.

Ultra Quiet Smart Zero Fan

Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.

＜30mV Low Ripple Noise Design

Top-end build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation ＜±2%

The voltage regulation, more strict than Intel’s standard +5%,-7% for major rails and ±10% for -12V, is set to no more than ±2% for major rails, providing steady clean power through exceptional voltage stability.

Fully Modular Low-Profile Flat Cable

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

100% High Quality Japanese 105°C/221°F Capacitors

Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail & High-Class Technologies

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

135mm Fluid Dynamic Bearing fan

Featuring a 135mm fluid bearing fan to guarantee superior cooling performance.

80 PLUS Gold Certified and Intel C6/C7 States Ready

Tough power GF3 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Note: Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.

Specification:

Model    PS-TPD-1000FNFAGD-4
Watts    1000W
Model    TPD-1000AH3FCG
Max. Output Capacity    1000W
Color    Black
Dimension ( W / H / D )    150mm(W) x 86mm(H) x 160mm(D)
Weight    1.72 KG
PFC (Power Factor Correction)    Active PFC
Power Good Signal    100-150 msec
Hold Up Time    > 17msec at 100% of full load
Input Current    13.0A / 6.5A
Input Frequency Range    50/60Hz
Input Voltage    100V – 240V~
OPERATING TEMPERATURE    0°C to + 40°C
Operating Humidity    20% to 90%,non-condensing
Storage Temperature    -20°C to + 70°C
Storage Humidity    5% to 95%, non-condensing
COOLING SYSTEM    13.5cm fluid bearing fan
Efficiency    Meet 80 PLUS®Gold at 115Vac input.
MTBF    100,000 hrs minimum
Safety Approval    CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC
PCI-E Connector    PCIe 6+2pin x 4
PCIe 12+4pin x 1
Protection    OCP, OVP, UVP, OPP, SCP, OTP
Warranty    10 Years
